Airway and WGS: a paired real-data example

This example shows what ABI means by contract-guided bioinformatics execution. Airway RNA-seq and bacterial WGS use the same agent-facing lifecycle, but they do not share a generic biological pipeline. Each plugin preserves its own study design, tools, resources, expected outputs, scientific endpoints, and limitations.

Research goal -> ABI plugin contract
                    |-- Airway -> STAR -> featureCounts -> DESeq2
                    |              `-> ranking + direction + sentinel evidence
                    `-- WGS ----> fastp -> SPAdes -> Prokka -> MLST -> AMRFinderPlus
                                   `-> ST93 + mecA evidence
Both lanes -> standard tables + provenance + limitations

The YAML configuration and pipeline_dag.yaml make the requested workflow inspectable. The ABI core then validates inputs, resources, environments, permissions, step contracts, outputs, and provenance. This distinction matters: a valid DAG is a plan, whereas a validated result directory is execution evidence, and a comparison with preregistered endpoints is biological evidence.

Shared operating lifecycle

For both analyses the researcher or agent follows the same control sequence:

abi query -> abi plan -> abi check -> abi dry-run -> review
          -> abi run --confirm-execution -> abi inspect
          -> abi validate-result -> abi report

The concrete configuration and sample sheet remain analysis-specific. The execution plan is the handoff between planning and runtime; published standard tables are the handoff between runtime and scientific comparison.

Airway RNA-seq

The Airway example uses eight paired-end libraries from four donors in GSE52778, comparing dexamethasone with untreated cells. The ABI analysis fixes the DESeq2 design to ~ donor + condition, preventing donor-to-donor variation from being mistaken for treatment response. STAR, featureCounts, and DESeq2 differ from the original hg19/TopHat/Cuffdiff analysis, so the validation target is agreement in effect direction and ranking, not equality of p-values or the significant-gene count.

Endpoint	Result	Interpretation
Formal execution	26/26 steps	Result directory passed validation
Genes compared with GEO	13,725	Genes mapped between ABI and the frozen GEO table
Dex log2FC rank agreement	Spearman ρ = 0.927	Strong agreement in treatment-effect ranking
Effect-direction agreement	90.8%	Matched genes with the same effect sign
Preregistered sentinel genes	7/7 concordant	Targeted directional check passed
Significant-set overlap	302 genes; Jaccard 0.0627	Reported as method-sensitive, not as the sole validity endpoint

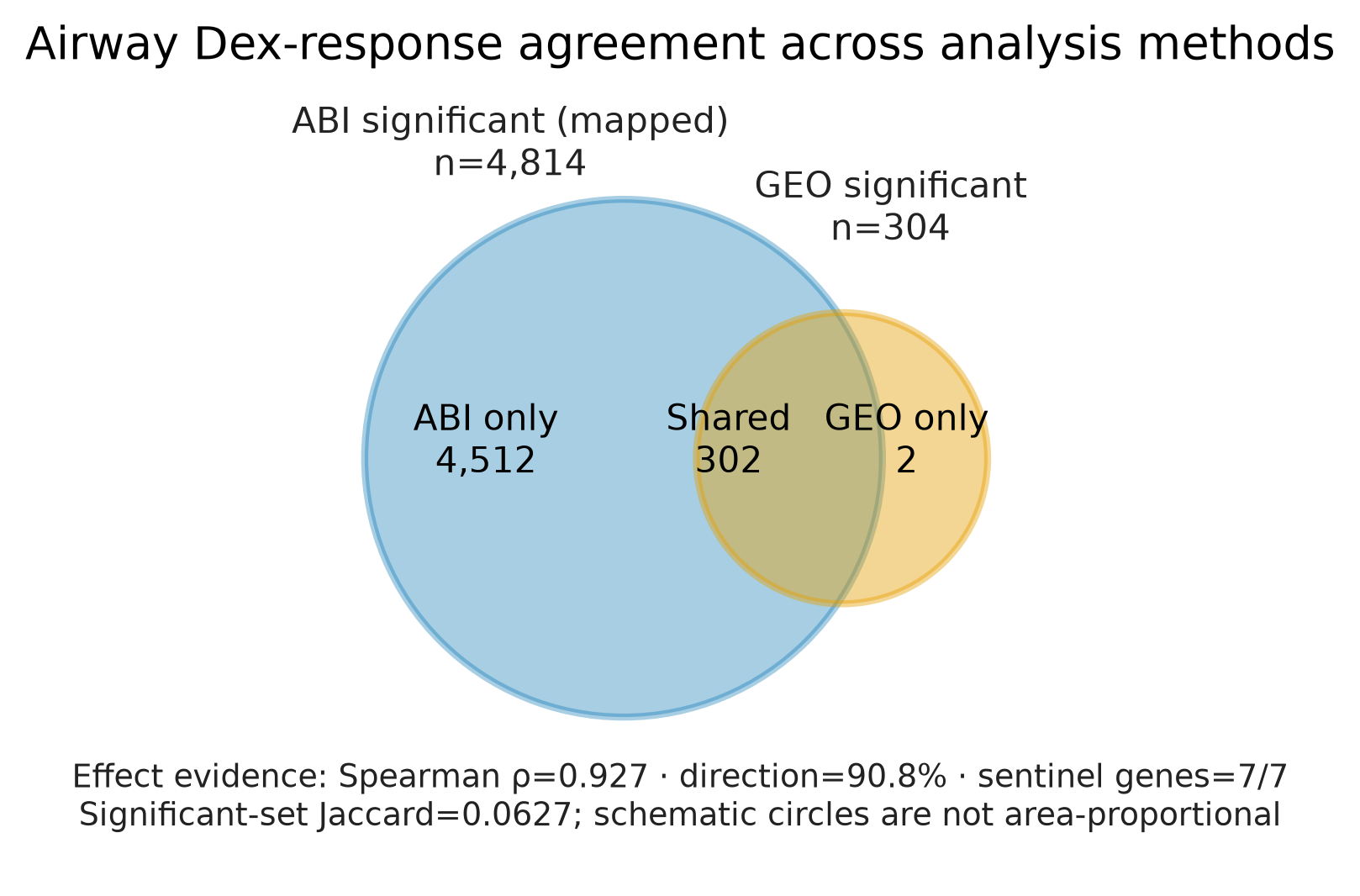

The chart intentionally plots only comparable agreement proportions. Spearman correlation and significant-set Jaccard remain in the exact-value table rather than being mixed onto the same bar axis.

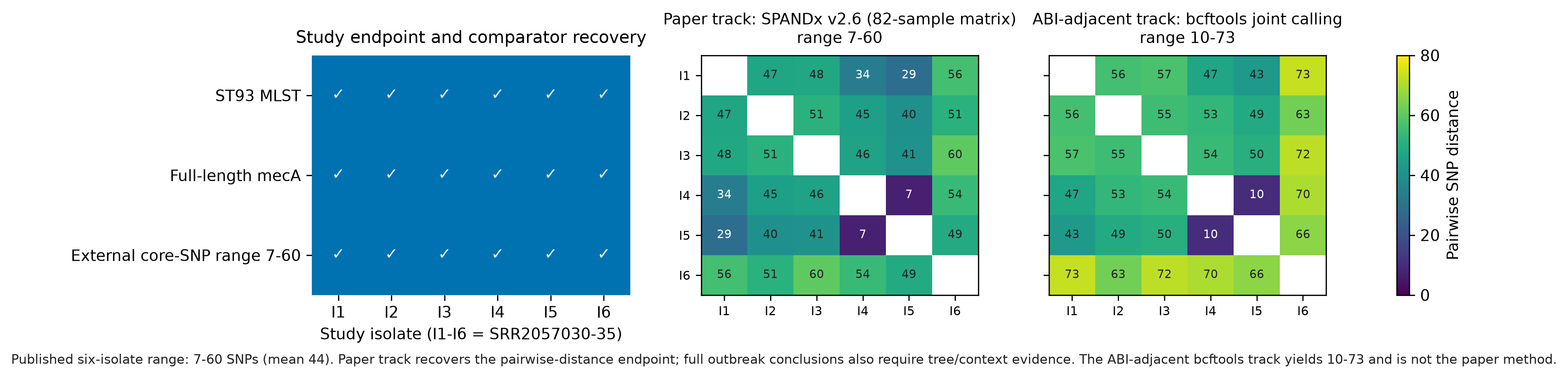

ST93 MRSA WGS

The WGS example uses six paired-end Staphylococcus aureus isolates from PRJNA286158. The plugin performs read QC, assembly, annotation, MLST, and AMR detection. The preregistered endpoints are recovery of the published ST93 identity and full-length mecA evidence.

Endpoint	Result	Interpretation
Formal execution	30/30 steps	Result directory and required standard tables passed validation
MLST	6/6 ST93	Study-specific sequence-type concordance
mecA	6/6	Each call had 100% amino-acid coverage and identity
AMR table	145 rows	Tool evidence rows, not 145 distinct resistance genes
Core-SNP pairwise range (paper track)	7-60 (median 47)	Original SPANDx v2.6 on the full 82-sample paper context restores the published six-isolate pairwise-distance endpoint 7-60 (mean 44); not a full outbreak-conclusion reproduction
Core-SNP pairwise range (ABI-adjacent track)	10-73 (median 55)	BWA mem + bcftools haploid joint calling; not the paper method, reported side by side

The core-SNP distance endpoint is recovered at the pairwise-distance level by an external track running the paper’s own SPANDx v2.6 toolchain against JKD6159 CP002114, with the paper context cohorts (PRJEB3144, PRJNA232112) included. The ABI wgs_bacteria plugin itself still ships no core-SNP module, so the recovery is credited to the strict comparison harness, not to the plugin. The paper’s no-recent-clonal-outbreak conclusion also depends on tree placement and the broader NT/background isolate distribution; it is not established by the six-isolate pairwise range alone.

Machine-readable evidence

• Canonical claim table

• Airway endpoints

• WGS endpoints

• Methods

• Limitations

• Airway FigureSpec

• WGS FigureSpec

• SCAPP descriptive FigureSpec

• Airway significant-set data

• WGS isolate evidence matrix

• WGS SNP pairwise distances (both tracks)

• WGS SNP track comparison summary

• SCAPP per-plasmid biological evidence

• Biological figure provenance

• Reproducible figure builder

Flagship case study: SCAPP plasmidome

SCAPP uses SRR11038083 to exercise ABI’s most evidence-rich plugin. The completed run contains 167 primary calls, 157 consensus plasmids, and 54 candidates with terminal-repeat evidence; the supplementary mobility analysis calls 20 candidates mobilizable. The independent paper-method reconstruction has passed its gate and reports strict reference-concordance precision = 12/157 = 0.0764, recall = 64/88 = 0.7273, and F1 = 0.1383.

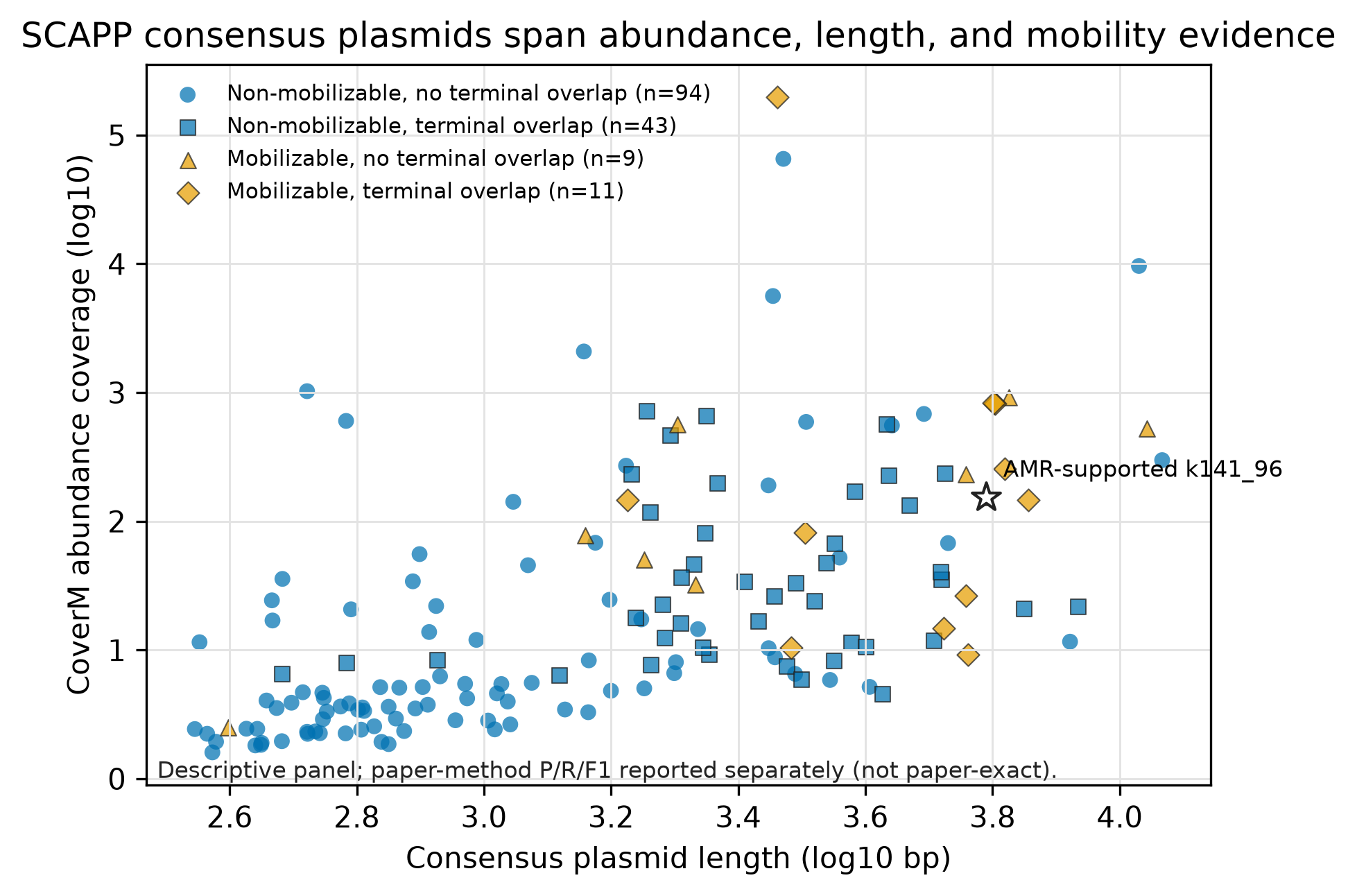

The scatter uses length, CoverM abundance, terminal-overlap status, mobility class, and AMR support for all 157 consensus candidates. It does not use the invalid historical reference-matched grouping and is not an accuracy curve.

Headline precision, recall, and F1 can now be reported as a paper-method reconstruction, but not as paper-exact reproduction. The earlier single-stage PLSDB screen omitted the paper’s contig-level gate and is excluded from metrics.tsv; the current v2 evidence uses an independent K127 assembly, both coverage gates, duplicate-prediction penalty, machine-evidence manifest, and figure provenance. Because the paper-specific 13,469-record PLSDB deduplication list is unavailable, this reconstruction uses the official 14,739-record PLSDB archive; precision means strict reference concordance and is not equivalent to a biological false-positive rate.

The machine-readable status is recorded in SCAPP status.

Limitations of this example

The two-workflow example establishes cross-plugin feasibility and recovery of study-specific endpoints; it is not a population-level accuracy benchmark. For Airway, the key mismatch is the alignment/counting/gene-aggregation/statistical workflow, not GRCh37.75 versus hg19 as a primary biological difference. The WGS core-SNP distance endpoint is recovered only through an external paper-toolchain track (pairwise 7-60), while the ABI plugin itself still has no core-SNP module and the ABI-adjacent bcftools track (10-73) must not be read as a paper reproduction. SCAPP’s headline metrics are reportable only as a paper-method reconstruction, not paper-exact, and strict reference precision must not be interpreted as a biological false-positive rate. These boundaries are first-class outputs rather than qualifications added after the analysis.
